Cold Storage Doors

Doors are among the most important elements of cold storage. Cold storage doors must provide convenience for all entries and exits to cold storage facilities along with keeping the temperature levels of a cold room within permitted range. They need to be in different types for different processing and storing conditions, product characteristics and needs of the facility. Correct choice of doors enables users to use cold storage in the most effective and efficient way.

Cantek began to operate in the cold storage industry by producing cold storage doors, and therefore has an extensive experience and broad product range for all types of cold room doors.





Benefits:

  • Easy to install and use
  • Elegant design and excellent compatibility
  • Impact resistance
  • Excellent seal
  • High-speed doors enabling easy pass through
  • Longevity

Providing solutions suitable for all types of sectors with its in-house developed and produced cold storage doors, Cantek offers the following types of doors:





HINGED DOORS

“Standard cold storage doors”

  • Suitable for mounting on panels and walls 40 to 200 millimetre-thick
  • Wing thickness varying from 8 to 15 centimetres
  • Passage measurements ranging between 70x180 and 120x220 centimetres
  • Coating alternatives with polyester, PVC, chrome, metal sheet
  • Aluminium or PVC frames
  • Various lock alternatives



PORTES BATTANTES

SLIDING DOORS

“Doors opening and closing with sliding action, and used for cold rooms requiring wide entry space”

  • Suitable for mounting on panels and walls 40 to 200 millimetre thick
  • Wing thickness varying from 8 to 15 centimetres
  • Passage measurements ranging between 100x200 and 250x400 centimetres
  • Coating alternatives with polyester, PVC, chrome, metal sheet
  • Aluminium or PVC frames



PORTES COULISSANTES

FLIP FLAP DOORS

“Semi-insulated doors that open and close at high speed between cold rooms and can remain open when needed”



  • Suitable for mounting on panels and walls
  • 4 centimetre wing thickness
  • Passage measurements ranging between 70x180 and 200x400 centimetres
  • Coating alternatives with polyester, PVC, chrome, metal sheet
  • Aluminium frames
  • Vision glass to monitor cooling process
  • Single or double wings



PORTES VA-ET-VIENT

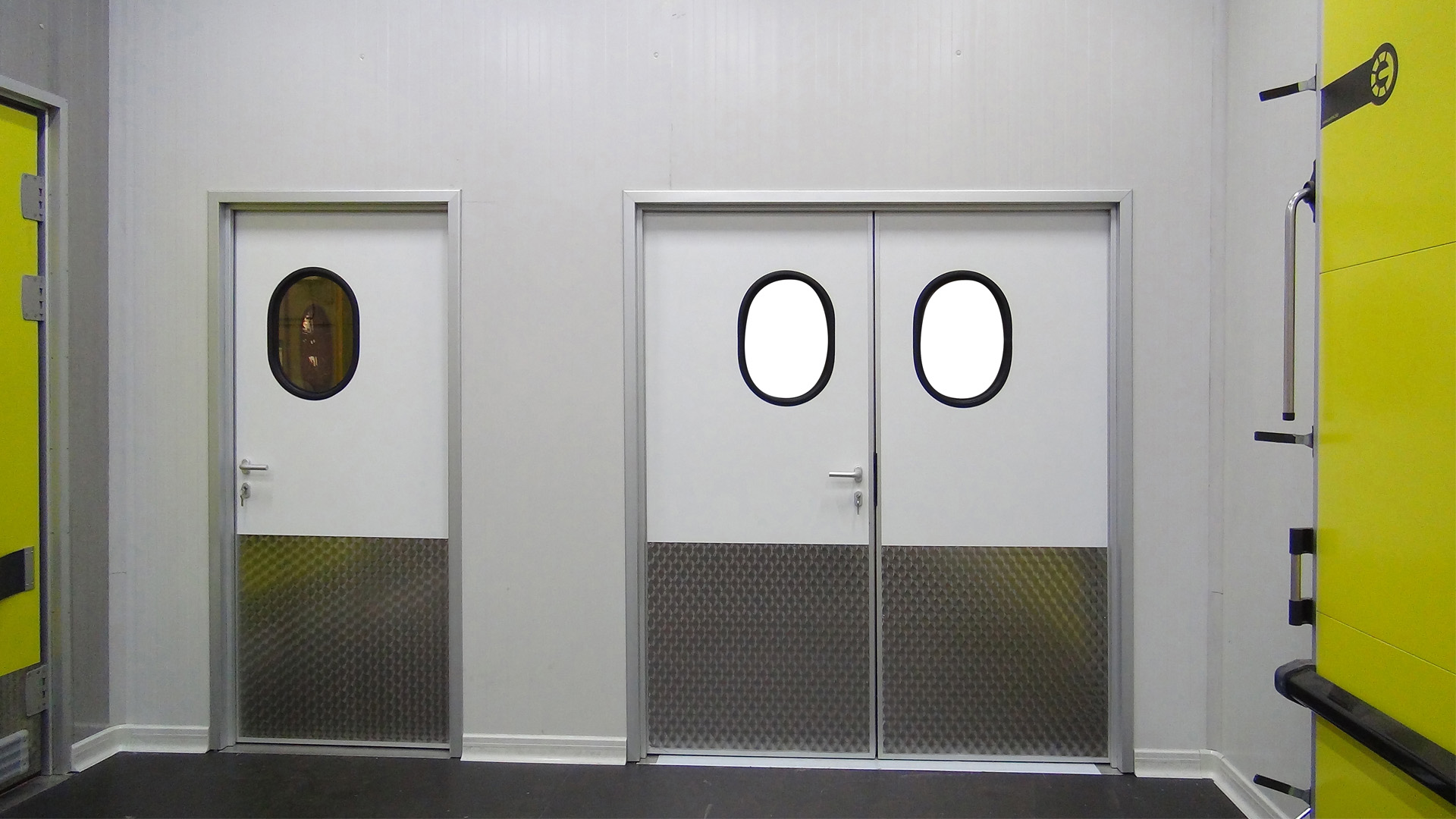

SERVICE DOORS

“Semi-insulated doors typically used for technical areas such as offices”

  • 4 centimetre wing thickness
  • Passage measurements ranging between 70x180 and 200x220 centimetres
  • Coating alternatives with polyester, PVC, chrome, metal sheet
  • Aluminium frames
  • Vision glass to monitor cooling process
  • Single or double wings



 PORTES DE SERVICE

CONTROLLED ATMOSPHERE SLIDING DOORS

“Special doors for cold rooms with specially designed controlled atmosphere systems”

  • Suitable for mounting on panels and walls 40 to 200 millimetre thick
  • Wing thickness varying from 8 to 9 centimetres
  • Passage measurements ranging between 100x200 and 250x400 centimetres
  • Coating alternatives with polyester, PVC, chrome, metal sheet
  • Aluminium or PVC frames
  • Special seal that provides 100% leak tightness at the joints of windows and panels.



PORTES COULISSANTES POUR ATMOSPHÈRE CONTRÔLÉE

LOADING DOORS

“Doors with no insulation used in areas outside of cold storage, during product transfer and loading”

  • Sectional doors
  • High speed doors
  • Ramp and bellows



PORTES DE CHARGEMENT

FLUSH DOOR

"Fits just like a room door."

Standard dimensions:

  • 70x170 cm
  • 80x180 cm
  • 90x190 cm
  • 100x200 cm

Benefits:

  • Minimized thickness
  • Esthetical and durable design
  • Flat design, excellent fitness
  • Hybrid frame which blocks heat transfer
  • Perfect insulation, 8-10-12 cm wing thickness
  • Maximum efficiency in use of hallways



PORTES DE CHARGEMENT


We offer innovative solutions that suit you.
